CNWINNEX Explosion‑proof Electrical Control Box | Electrical Safety Control Solution for Hazardous Locations

In high‑risk operating environments such as chemical plants, oil and gas facilities, dust processing, grain handling, pharmaceutical manufacturing, ports and offshore installations, electrical control for equipment start‑stop, protection, signalling and interlock systems requires a higher level of explosion‑proof design. Ordinary electrical enclosures are not suitable for explosive gas or combustible dust atmospheres, where electrical sparks, overheating or short‑circuit faults may lead to serious safety incidents.

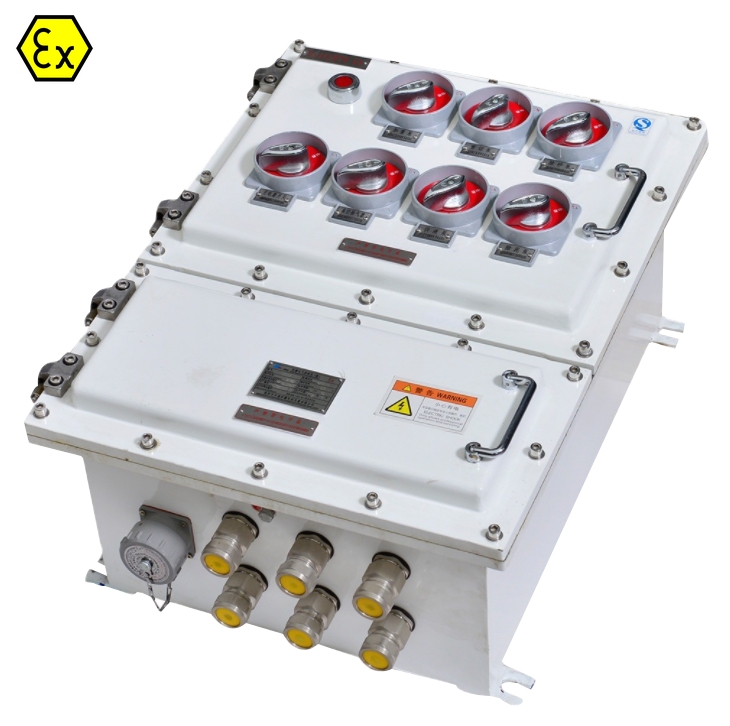

The CNWINNEX Explosion‑proof Electrical Control Box is designed specifically for electrical control requirements in hazardous areas. It can be used for explosion‑proof control and protection of motors, fans, pumps, valves, lighting, instruments and packaged equipment. The product adopts flameproof, intrinsically safe and other explosion‑proof protection technologies, suitable for Zone 1 / Zone 2 explosive gas areas and Zone 21 / Zone 22 combustible dust areas, helping projects achieve compliant, reliable and safe electrical control management.

Application Scope

●        The CNWINNEX Explosion‑proof Electrical Control Box is suitable for the following applications:

●        Explosive Gas Environments Suitable for Zone 1 and Zone 2 explosive gas hazardous areas, controlling explosion‑proof fans, pumps, lighting and field instruments.

●        Combustible Dust Environments Suitable for Zone 21 and Zone 22 combustible dust hazardous areas, supporting dust‑proof electrical interlocking and equipment control.

●        Chemical and Pharmaceutical Projects Can be integrated with explosion‑proof instruments, sensors, solenoid valves, alarm devices and emergency shutdown systems.

●        Grain Processing and Storage Projects Suitable for electrical control in dust‑risk areas such as grain conveying, dust collection, screening and storage.

●        Port, Offshore and Oil & Gas Projects Suitable for platforms, skid‑mounted equipment, explosion‑proof electrical rooms and field control stations under harsh operating conditions.

●        Indoor and Outdoor Locations Depending on protection class and material selection, the product supports indoor, outdoor, wall‑mounted, floor‑standing and skid‑mounted installation.

Structural Features

The CNWINNEX Explosion‑proof Electrical Control Box is designed with safety, reliability and ease of maintenance in mind.

1. Explosion‑proof Enclosure Design

The box adopts a high‑strength explosion‑proof enclosure with flameproof protection capability. It can withstand internal explosion pressure, prevent flame and hot gas transmission, and reduce the risk of igniting the external atmosphere.

2. Modular Configuration

The control box can be configured with circuit breakers, contactors, thermal relays, control buttons, indicator lamps, selector switches, ammeters, voltmeters, PLCs, relays and terminal blocks according to project requirements, realizing start‑stop, protection, signalling, interlock and remote control functions.

3. Multi‑chamber and Segmented Design

For high‑voltage, low‑voltage, intrinsically safe signal and power circuits, a multi‑chamber or segmented wiring design can be adopted to reduce interference and risk between different circuits and improve system safety.

4. Reliable Wiring and Protection

Cable entries use explosion‑proof cable glands or sealed joints to ensure reliable protection at cable inlet points. Internal wiring is arranged neatly with clear terminal identification, facilitating installation, inspection and maintenance.

5. Multiple Installation Methods

The product supports wall‑mounted, floor‑standing, bracket‑mounted and skid‑mounted installation, meeting different layout requirements such as near‑field equipment, field control stations, explosion‑proof electrical rooms and outdoor skids.

Product Features

1. High Explosion‑proof Safety Level

Suitable for explosive gas and combustible dust hazardous areas, the product can be configured with various explosion‑proof protection methods such as Ex db, Ex ib, Ex mb, Ex tb and Ex tc according to project requirements.

2. Rich Control Functions

It can realize motor direct‑on‑line starting, star‑delta starting, soft starting, VFD control, dual power switching, emergency shutdown, interlock protection, status indication and remote monitoring.

3. Comprehensive Protection Capability

Built‑in circuit breakers, contactors, thermal relays, fuses, surge protection and earthing protection provide protection against overload, short circuit, leakage, undervoltage, overvoltage and other abnormal conditions.

4. Suitable for Complex System Integration

It can interface with DCS, PLC, SCADA, BMS, EMS and other systems to realize centralized monitoring, remote operation and interlock management of field equipment.

5. Optional Material and Protection Class

Enclosure materials can be selected from carbon steel, stainless steel, FRP or alloy materials. Surfaces can be treated with powder coating, anti‑corrosion coating or special coatings to adapt to corrosive, humid, dusty and outdoor environments.

6. Strong Customization Capability

CNWINNEX can provide customized design according to customer‑supplied electrical schematics, component lists, installation dimensions, explosion‑proof ratings, protection classes and special operating conditions, meeting the requirements of different industrial projects.
