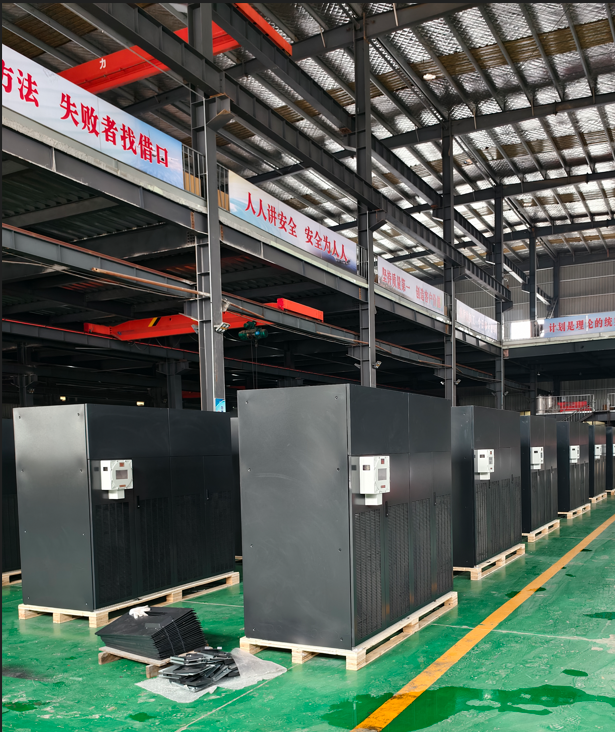

Safeguard the Data Lifeline | Atex Certified CNWINNEX Explosion-Proof Precision Air Conditioner, Build a Solid Security Barrier for Data CentersAs digitalization sweeps across the globe, data centers have become the core heart of enterprise operation. Nevertheless, the continuous high-load operation of precision equipment brings severe challenges to heat dissipation and safety. Especially for data centers deployed in high-risk environments such as petrochemical, mining and military industries, a single spark or subtle temperature deviation may lead to irreversible losses. Tailored for high-risk data centers, Atex Certified CNWINNEX explosion-proof precision air conditioners delivering extreme temperature control and robust explosion-proof technology to ensure efficient and secure data operation.![CNWINNEX Pressurized Explosion-Proof Cabin]( "CNWINNEX Pressurized Explosion-Proof Cabin")
CNWINNEX Pressurized Explosion-Proof CabinRedefining Active Safety with Global Standards & Intelligent Technology In high-risk industries where explosive atmospheres are a constant threat, CNWINNEX’s Pressurized Explosion-Proof Cabin delivers more than just passive containment. It embodies the highest international certifications and integrates intelligent systems to provide a complete, lifecycle safety solution.![Explosion-proof Unitary Air Conditioner]( "Explosion-proof Unitary Air Conditioner")
Explosion-proof Unitary Air Conditioner1. Explosion-proof unitary air conditioner with high cooling and heating capacity, delivering fast cooling and heating response. It is a highly intelligent air conditioning system.
2. The indoor unit features a frame structure with an LCD display, ultra-quiet design for silent operation, and fully automatic operation.
3. Equipped with fully automatic fault self-diagnosis and automatic on/off settings.
4. Utilizes a brand-name expansion valve as the throttling device, allowing flexible refrigerant flow adjustment based on load demand for more efficient operation.
5. Incorporates high-efficiency inner-grooved copper tubes and hydrophilic fins for superior heat transfer performance.
6. Employs a microprocessor-based automatic control system with fault self-diagnosis capability, ensuring energy-efficient, time-saving, and user-friendly operation.
7. Key refrigeration components are sourced from world-renowned brands to ensure long-term, high-efficiency performance.![Winnex Atex Certified Wall-Mounted Split-Type Explosion-Proof Air Conditioner]( "Winnex Atex Certified Wall-Mounted Split-Type Explosion-Proof Air Conditioner")

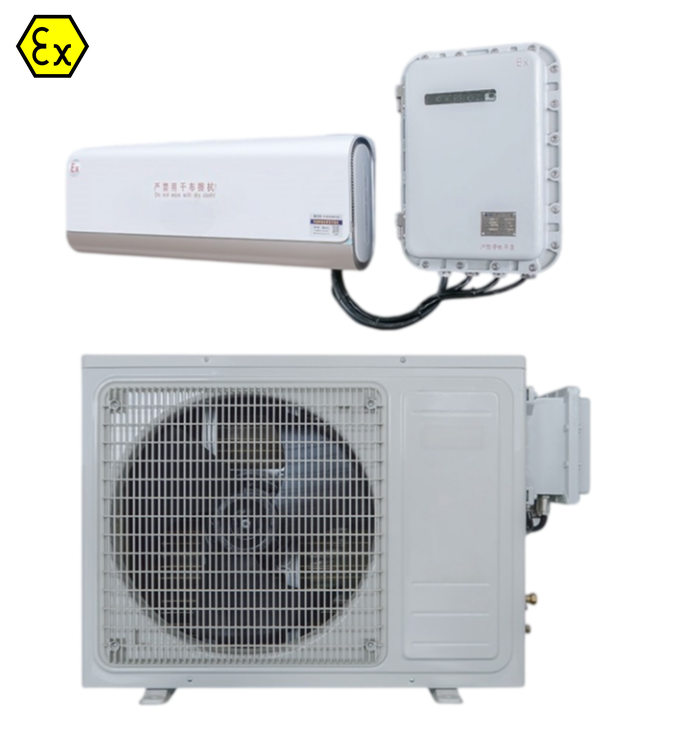

Winnex Atex Certified Wall-Mounted Split-Type Explosion-Proof Air ConditionerIn industrial sectors such as oil and gas, chemicals, and pharmaceuticals, safety standards cannot be ambiguous. The Winnex Wall-Mounted Split-Type Explosion-Proof Air Conditioner is engineered from the ground up with deep integration of the international explosion-proof standard system. We firmly believe that true safety stems from precise adherence to every technical specification. The product is designed in strict accordance with the EU ATEX Directive and fully complies with the following core harmonized standards, ensuring every phase from concept to finished product withstands the most rigorous scrutiny![20KW Explosioin Proof Packaged Air Conditioner]( "20KW Explosioin Proof Packaged Air Conditioner")
20KW Explosioin Proof Packaged Air ConditionerIn high-risk flammable and explosive scenarios such as petrochemical engineering, natural gas extraction, military industry laboratories, and hazardous chemical warehousing, explosion-proof reliability and installation convenience of temperature control equipment are critical prerequisites for safe production. The Winnex 20KW ATEX-Certified Explosion-Proof Packaged Air Conditioner has become a benchmark product for temperature control in hazardous environments with its exclusive integrated design and authoritative ATEX explosion-proof certification, providing dual guarantees of "safety + efficiency" for high-risk locations.
CNWINNEX Atex Certified Rooftop Explosion-Proof Air Conditioning Unit
ATEX Certified, Safe & Efficient, Tailored for Hazardous Environments In high-risk areas with explosive gases or dust, such as petroleum, chemical, pharmaceutical, and military industries, ordinary air conditioners cannot meet safe operation requirements.
The CNWINNEX Rooftop Explosion-Proof Air Conditioning Unit is designed and manufactured in strict accordance with ATEX Directive 2014/34/EU, fully ATEX-certified, and compliant with core explosion-proof standards including EN IEC60079-0+AC2020, EN 60079-1:2014, EN60079-2015+A1:2017, EN 60079-11:2012, and EN 60079-31:2014. It delivers an extremely safe, stable, and reliable temperature control solution for Zone 1 and Zone 2 explosive atmospheres.
Core Advantages
● Authoritative Explosion-Proof Certification, Compliance Assured
The entire unit holds EU ATEX certification, developed and produced per ATEX Directive 2014/34/EU and multiple EN explosion-proof standards. It is directly applicable to IIA, IIB, IIC class T1-T4 group explosive gas environments, meeting global hazardous area access requirements.
● Integrated Rooftop Design, Simplified Installation & Maintenance
Featuring an all-in-one rooftop structure integrating the main unit, air supply system, and explosion-proof control unit, it requires no equipment room or complex piping. Directly mounted on the roof, it significantly reduces construction costs. With no moving parts or water pipes indoors, it eliminates water leakage risks and enables easy maintenance, suitable for various outdoor and rooftop installation scenarios.
● End-to-End Explosion-Proof Protection, Zero Safety Hazards
Key components adopt multiple explosion-proof technologies (flameproof, intrinsic safety, encapsulation). The explosion-proof control cabinet is hermetically reinforced, spark-free and free of high-temperature surfaces during operation. Customized explosion-proof compressors and fans withstand extreme ambient temperatures from -20℃ to +55℃, ensuring reliable performance in harsh conditions.
● Energy-Efficient Operation, Long-Lasting Stability
Equipped with a hermetic scroll explosion-proof compressor and high-efficiency heat exchange coils, it delivers powerful cooling and heating with superior energy efficiency. The microprocessor-based intelligent control with digital display ensures low-noise, stable performance and 24/7 continuous operation for industrial applications.
● Flexible Multi-Scenario Adaptation, Customized Solutions
Cooling/heating capacity and functional sections can be customized to site requirements, supporting fresh air, dehumidification, humidification, and air purification. Explosion-proof class and temperature group are adaptable to on-site conditions, ideal for petrochemical plants, pharmaceutical workshops, research labs, military warehouses, offshore platforms, and more.
Compliance Standards
ATEX Directive: 2014/34/EU
General Requirements: EN IEC60079-0+AC2020
Flameproof Enclosures: EN 60079-1:2014
Material Classification: EN60079-2015+A1:2017
Intrinsic Safety: EN 60079-11:2012
Dust Explosion Protection: EN 60079-31:2014
CNWINNEX Rooftop Explosion-Proof Air Conditioning Unit — Built on stringent explosion-proof standards, focused on safety and efficiency, it provides reliable temperature control for high-risk industrial environments worldwide, supporting enterprises in achieving safe production and compliance.
