Full Mobility & Full Explosion-Proof Safety | CNWINNEX BKT-3.5F Mobile Packaged Explosion-Proof Air Conditioner for Hazardous Industrial Sites
Fixed explosion-proof air conditioners often lack flexibility for dynamic industrial scenarios, such as temporary chemical operation zones, explosion-proof laboratories, hazardous chemical storage areas and equipment maintenance stations. Designed for variable and high-risk working environments, the CNWINNEX BKT-3.5F Mobile Packaged Explosion-Proof Air Conditioner delivers instant, compliant and movable cooling without complex installation, perfectly solving temporary temperature control demands in explosive hazardous areas.
CNWINNEX BKT-35(G) 35KW Split Floor-Standing Explosion-Proof Air Conditioner | IIC High-Grade Compliant Industrial Thermal Solution
Designed for large-space and high-load hazardous environments such as large chemical parks, oil and gas refineries, hazardous chemical warehouses, high-risk industrial workshops and explosion-proof laboratory cabins, the CNWINNEX BKT-35(G) 35KW split floor-standing explosion-proof air conditioner delivers powerful cooling performance, full-range explosion-proof protection and ultra-wide operating adaptability. It comprehensively solves core industrial pain points including precise temperature control, safety compliance and long-term stable operation in explosive hazardous areas, serving as a professional thermal solution for medium and large high-risk industrial sites.
CNWINNEX BKT 16 (G) Split Type Floor Standing Explosion Proof Air Conditioner｜T3 High Ambient Rated, Cooling & Heating Industrial Explosion Proof Temperature Control Unit
CNWINNEX BKT 16 (G) Split Type Floor Standing explosion proof air conditioner is engineered for hazardous locations including chemical plants, oil gas workshops, hazardous chemical warehouses and explosion proof laboratories. It delivers reliable performance under T3 high ambient conditions with dedicated cooling, heating and electric auxiliary heating functions. Powered by 3 phase 400V industrial supply, it satisfies year round constant temperature demands of high risk industrial sites. The indoor unit features anti aging ABS casing. The outdoor unit adopts heavy duty carbon steel casing to resist corrosion in harsh outdoor environments. Built for long term non stop industrial operation, it guarantees dependable temperature control and equipment compliance for production within hazardous classified areas.
CNWINNEX EGDZ Explosion-Proof Barrier | ATEX Certified Industrial High-Risk Access Control
Absolute safety and long-term stability are the core requirements for access management in flammable and explosive industrial environments. The CNWINNEX EGDZ Explosion-Proof Barrier is a professional safety access device customized for high-risk hazardous scenarios. Fully certified by authoritative EU ATEX certification, it adopts top-tier IIC explosion-proof technology and IP66 all-weather protection structure. It provides highly reliable vehicle and personnel access control solutions for petroleum, chemical, pharmaceutical, metallurgical, natural gas, fire protection and other industries, ensuring comprehensive safety protection for industrial production and operation.
BXK51 Series Explosion-proof Electrical Control Cabinet | Full IECex Compliance High-Safety Control Solution for Hazardous Areas
CNWINNEX BXK51 Series Explosion-proof Electrical Control Cabinet is a high-standard industrial explosion-proof equipment developed and manufactured in full compliance with the IECex international explosion-proof certification system. It strictly adheres to two core international standards: IEC 60079-0:2017 (Edition 7.0) Explosive atmospheres - Part 0: Equipment - General requirements and IEC 60079-1:2014 (Edition 7.0) Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d". The whole production process including structural design, performance testing, safety verification and marking specification fully meets international norms, delivering authoritative and globally recognized explosion-proof qualification for worldwide hazardous industrial applications.
CNWINNEX Explosion Proof Precision AC | Compliant with ATEX 2014/34/EU, Safeguarding On Land Hazardous Location Data Centers
At on land industrial sites such as oil gas refineries and fine chemical industrial parks, explosion proof data rooms, edge computing rooms and industrial measurement control data centers are located within Zone 1 and Zone 2 explosive gas hazardous areas. These facilities undertake core tasks including production data acquisition, process regulation and safety monitoring. Demanding 7×24 hour continuous operation of IT hardware, they require precise temperature humidity cooling performance, while air conditioning units must satisfy full explosion proof compliance. Conventional commercial precision air conditioners cannot be deployed directly.
July 10, 2026: CNWINNEX delivered 4 sets of ATEX-certified explosion-proof split wall-mounted air conditioners to Uzbekistan customers
On July 10, 2026, CNWINNEX successfully completed production, quality inspection and full delivery of ATEX-certified explosion-proof air conditioners. A total of 4 sets of standardized explosion-proof split wall-mounted air conditioning units were officially delivered to customers in Uzbekistan, supporting the safety compliance upgrading of temperature control systems for local high-risk industries including oil & gas, chemical engineering and laboratories.

Tailored for the harsh Central Asian climate featuring high temperature, frequent sandstorms and large day-night temperature differences, all units support stable operation within an ambient temperature range of -7℃～43℃, adapting to local extreme summer heat and dusty working conditions. Equipped with a high-grade composite explosion-proof system, all units are uniformly marked Ex db ib mb IIC T4 Gb. Adopting flameproof, intrinsic safety and encapsulation triple explosion-proof technology, the units can operate safely in Zone 1 and
Full 20FT Container of ATEX Inverter Explosion-Proof AC Delivered to UAE Client on July 5, 2026
A full 20FT container of CNWINNEX ATEX inverter explosion-proof air conditioners has been delivered to UAE customers, including 23 sets of BKT-7.5(F) 7.5KW inverter split wall-mounted explosion-proof air conditioners and 1 set of BKT-7.5(C) 7.5KW inverter window type explosion-proof air conditioner. All units carry uniform explosion-proof marking Ex db ib mb IIC T4 Gb, with an ambient operating temperature range of -7℃ ~ 55℃, optimized for high-temperature and sandy climate in the Middle East. Fully certified to complete EU ATEX standards, the units support safe deployment in Zone 1 & Zone 2 explosive gas hazardous areas.

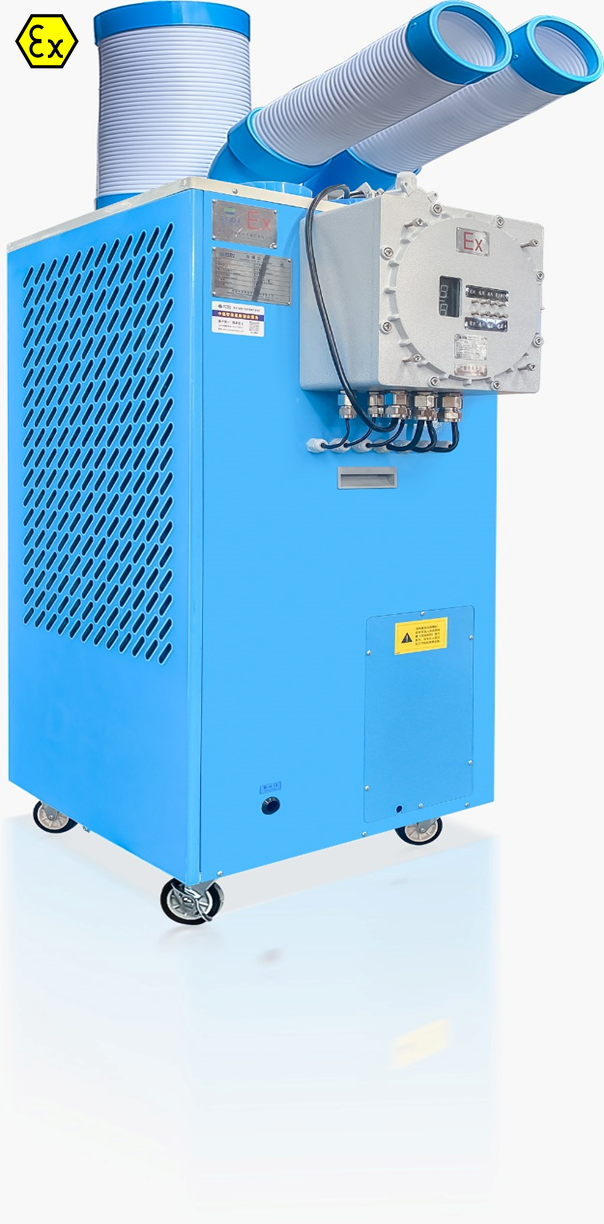

Full Mobility & Full Explosion-Proof Safety | CNWINNEX BKT-3.5F Mobile Packaged Explosion-Proof Air Conditioner for Hazardous Industrial Sites

Fixed explosion-proof air conditioners often lack flexibility for dynamic industrial scenarios, such as temporary chemical operation zones, explosion-proof laboratories, hazardous chemical storage areas and equipment maintenance stations. Designed for variable and high-risk working environments, the CNWINNEX BKT-3.5F Mobile Packaged Explosion-Proof Air Conditioner delivers instant, compliant and movable cooling without complex installation, perfectly solving temporary temperature control demands in explosive hazardous areas.

The unit is certified with full Ex db ib mb IIC T4 Gb explosion-proof protection. Adopting integrated flameproof, intrinsically safe and encapsulated triple protection structure, it can be safely operated in Zone 1 and Zone 2 explosive gas atmospheres. All core electrical components are fully explosion-proof treated to eliminate spark risks and comply with international industrial safety specifications for IIC-grade high-risk gas environments.

Equipped with a rated cooling capacity of 3.5kW and an air flow of 750m³/h, the unit provides stable and uniform cooling for small and medium-sized industrial spaces and individual working stations. With a low rated power input of 1.6kW and eco-friendly R410a refrigerant matched with high-efficiency copper tube and aluminum fin heat exchangers, it achieves stable cooling performance with outstanding energy-saving efficiency.

Capable of continuous operation within an ultra-wide ambient temperature range of-7℃ to 52℃, the unit maintains stable cooling performance under extreme high-temperature, low-temperature and humid working conditions. The carbon steel powder-coated casing provides excellent corrosion resistance, rust resistance and durability for long-term industrial service. As an all-in-one packaged unit, it requires no outdoor unit or professional installation, supporting plug-and-play and free mobility on site.

Customized for special overseas power standards, the BKT-3.5F supports 110V/50Hz power supply, perfectly adapting to overseas small-scale industrial projects in Southeast Asia, the Middle East and other regions. With compact dimensions of 461×490×940mm, it occupies minimal space and allows flexible relocation, ideal for narrow working areas and temporary operation sites.

Featuring full mobility, zero installation, high safety and low energy consumption, the CNWINNEX BKT-3.5F mobile explosion-proof air conditioner fills the market gap of temporary cooling solutions for high-risk industrial scenarios. It provides reliable, compliant and energy-efficient temperature control protection for global small and medium-sized hazardous working environments.

Product Name: Explosion-proof Air Conditioner

Model: BKT-3.5F

Structure Type: Mobile Packaged Type

Explosion-Proof Grade: Ex db ib mb IIC T4 Gb

Power Supply: 110V / 50Hz

Cooling Capacity: 3.5 kW

Rated Power Input: 1.6 kW

Rated Airflow: 750 m³/h

Dimension: 461 × 490 × 940 mm

Refrigerant: R410a

Heat Exchanger Material: Copper tube with aluminum fins

Casing Material: Carbon steel, powder-coated

Operating Ambient Temperature: -7℃～52℃
