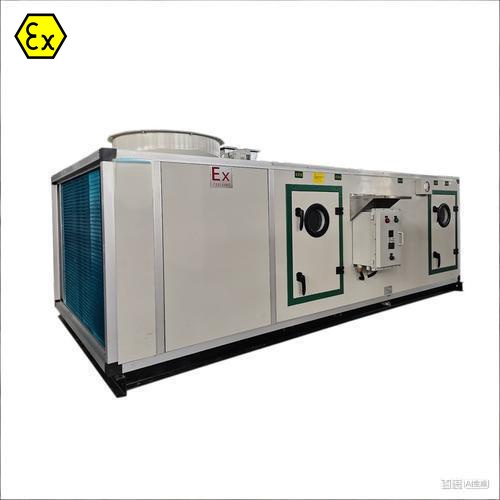

CNWINNEX Atex Certified Rooftop Packaged Explosion-Proof Air Conditioning Unit
All-in-one rooftop integrated unit with dual ATEX II 2G / II 2D certification, fully compliant for Gas Zone 1 & Zone 2, Combustible Dust Zone 21 & Zone 22
Centralized climate control solution for large hazardous workshops, chemical storage, offshore modular living quarters & bulk explosion-proof production facilities
Conventional split AC occupies valuable floor space with messy pipeline layout, failing to deliver unified temperature control for large high-risk factories. CNWINNEX packaged rooftop explosion-proof air conditioner integrates cooling, heating, air supply and full explosion-proof electrical system into one monoblock unit, directly mounted on roof without separated indoor/outdoor piping, maximizing usable indoor space.
Fully compliant with EU ATEX Directive 2014/34/EU, the unit adopts triple combined protection: flameproof, intrinsically safe & encapsulation structure. Compressors, fans, control boards and all terminal blocks undergo full explosion-proof sealing modification to completely eliminate ignition risks from electric arcs and overheated surfaces.
Designed for non-stop 24/7 industrial operation, wide cooling capacity range for small to large workshops. Optional fresh air intake, filtration & dehumidification modules available, widely deployed in petrochemical plants, powder processing workshops, lithium battery factories, offshore platforms and fine chemical facilities, fully meeting EU hazardous area regulatory compliance requirements.
Core Advantages
Dual Full ATEX Certification for All Four Hazardous Zones
Complete ATEX certificate issued by EU Notified Body, marked II 2G for Gas Zone1/2 & II 2D for Dust Zone21/22. Compatible with IIA/IIB/IIC hydrogen-class gas groups and T1~T4 temperature classes. Suitable for mixed environments with hydrocarbon vapor and lithium/starch combustible dust, passing compliance inspection for global EPC projects.
All-In-One Rooftop Layout, No Complex Split Piping
Integrated refrigeration, explosion-proof electrics and air duct in single cabinet, installed wholly on roof with only supply/return air openings indoors. Cut massive cost on explosion-proof refrigerant piping & cabling, shorten construction timeline, eliminate exposed pipelines and gas penetration risks inside workshops.
Triple-Layer Combined Explosion Protection, Zero Ignition Hazards
Thick cast aluminum flameproof enclosures for core electric components to contain internal explosion without flame leakage;
Intrinsically safe control circuits limiting arc ignition energy;
Encapsulated motors & junction boxes blocking gas/dust infiltration;
Strict surface temperature control under T4 limit to avoid spontaneous combustion.
Wide Capacity Range for Centralized Cooling of Large Hazardous Buildings
Multiple cooling tonnages available for workshops from hundreds to thousands square meters. High-airflow even air distribution with temperature fluctuation ≤±2℃. Optional heat pump heating, electric auxiliary heat, fresh air filtration & dehumidification modules to realize temperature control, ventilation and dust purification in one unit.
Heavy-Duty Corrosion-Resistant Construction for Harsh Outdoor Conditions
Epoxy anti-corrosion coating on unit cabinet, protected condenser coils as standard; full 304 stainless steel version optional for offshore salt fog & acid chemical vapor environments. Wide voltage 220V/380V 50/60Hz, stable startup under ambient temperature -20℃ ~ +55℃.
Intelligent Centralized Control & Low Maintenance Cost
Industrial-grade explosion-proof microcontroller with self-diagnosis, high/low pressure, phase loss & overload multi-protection. RS485 communication port reserved to connect plant DCS system for remote cluster monitoring. Modular disassembly design enables all maintenance on rooftop without occupying production space.
Compliance Standards
ATEX Directive: 2014/34/EU
General Requirements: EN IEC60079-0+AC2020
Flameproof Enclosures: EN 60079-1:2014
Material Classification: EN60079-2015+A1:2017
Intrinsic Safety: EN 60079-11:2012
Dust Explosion Protection: EN 60079-31:2014
Hazardous Zone Application Instruction
● Flammable Gas Atmosphere Zone 1 & Zone 2
Zone 1: Persistent & frequent explosive gas mixture under normal operation (chemical reactor rooms, oil & gas pump houses)
Zone 2: Temporary flammable vapor leakage only caused by equipment failure (tank peripheries, pipeline racks)
CNWINNEX II 2G rooftop units guarantee long-term safe operation.
● Combustible Dust Atmosphere Zone 21 & Zone 22
Zone 21: Periodic suspended dust clouds generated during production (lithium powder blending, grain milling workshops)
Zone 22: Accidental short-duration dust accumulation (powder finished goods storage, packaging areas)
II 2D dust explosion-proof packaged units cover all dust hazardous conditions.
CNWINNEX Rooftop Explosion-Proof Air Conditioning Unit — Built on stringent explosion-proof standards, focused on safety and efficiency, it provides reliable temperature control for high-risk industrial environments worldwide, supporting enterprises in achieving safe production and compliance.
