CNWINNEX Explosion-Proof Split Wall-Mounted Air Conditioner: Wide-Temperature Cooling from -7℃ to 55℃ for ATEX Zone 1 & 2 Hazardous Sites

CNWINNEX Explosion-Proof Split Wall-Mounted Air Conditioner: Wide-Temperature Cooling from -7℃ to 55℃ for ATEX Zone 1 & 2 Hazardous Sites

In oil and gas stations, chemical plants, and high-temperature work zones on offshore platforms, the question is not whether an air conditioner can cool—it is whether it can keep cooling when the ambient temperature pushes past 55℃, while simultaneously meeting the non-negotiable compliance requirements of Zone 1 and Zone 2 hazardous areas. Safety and performance are not a trade-off. They are the baseline.

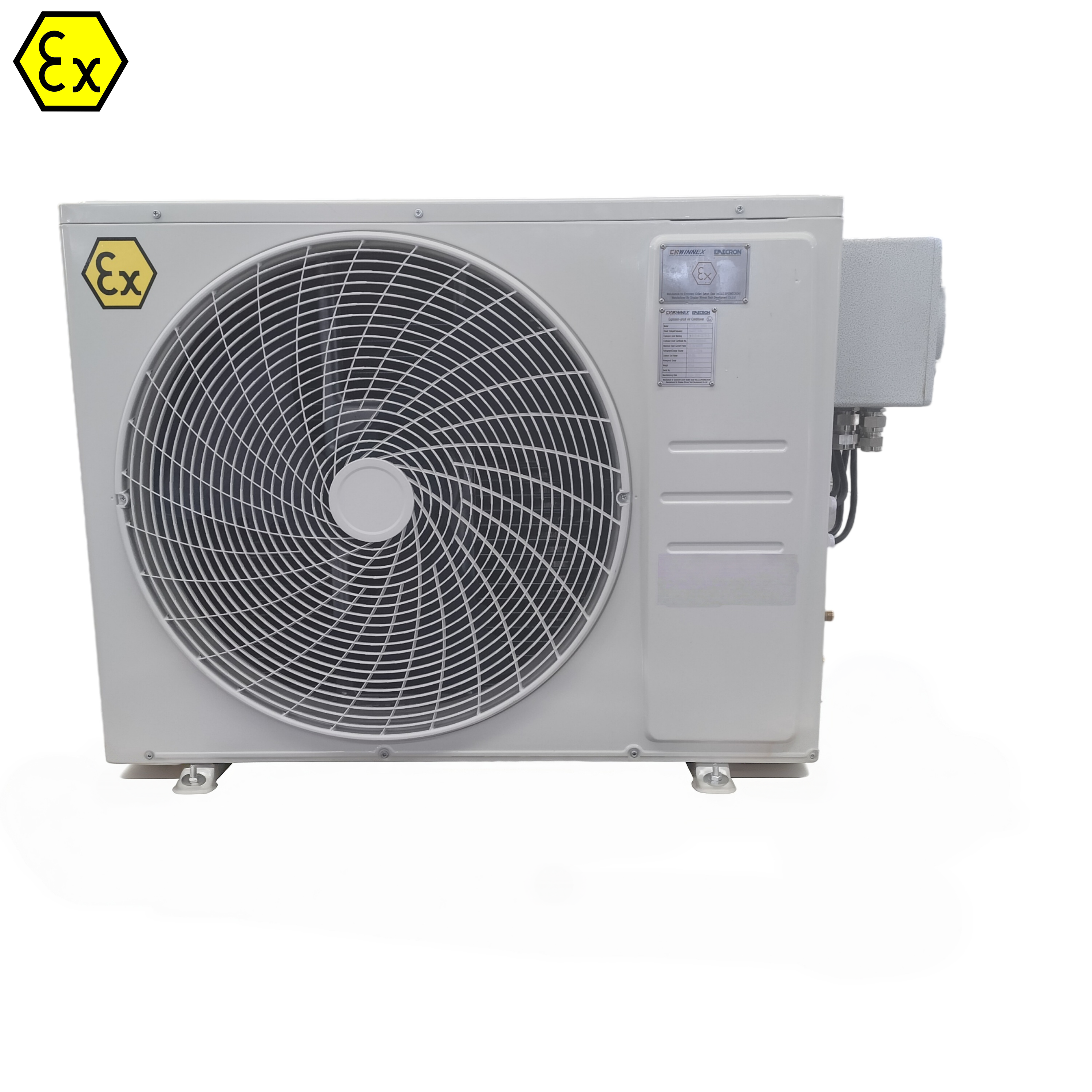

The CNWINNEX split wall-mounted high-temperature explosion-proof air conditioner is engineered for exactly this intersection. It delivers stable cooling across a -7℃ to 55℃ ambient range, operating reliably through both extreme heat and sub-zero cold. With explosion protection marking Ex db mb IIC T4 Gb, it is suitable for Zone 1 and Zone 2 explosive gas atmospheres and designed in strict compliance with ATEX Directive 2014/34/EU.

The global hazardous location air conditioner market continues to expand at a steady CAGR, driven by the dual forces of industrial growth in oil and gas, petrochemicals, and offshore operations, and the tightening of ATEX and IECEx compliance requirements worldwide. A split wall-mounted unit that is genuinely rated for 55℃ ambient and Zone 1/2 service sits at the practical center of that demand—where project compliance meets operational reliability.

Why 55℃ Changes Everything: High-Temperature Cooling as a System Problem

At 55℃ ambient, the temperature differential between the condenser and the surrounding air collapses. Heat rejection becomes disproportionately harder, and cooling capacity degradation is not a risk—it is the default outcome for conventionally designed systems. CNWINNEX addresses this at the system level: enlarged heat-exchange surface area to recover lost temperature differential, optimized airflow paths to reduce resistance, and strengthened outdoor fan heat dissipation to drive heat out under conditions that would overwhelm standard units. The refrigeration system retains sufficient heat-transfer headroom to prevent capacity from degrading as ambient temperatures climb.

Heat is equally unforgiving on electrical components and seals. The outdoor unit's internal control unit, compressor, fan motor, protective system, heat-removal circuit, and refrigeration system all receive targeted explosion-proof treatment and heat-resistant design. Specialized processes and control logic prevent key components from failing due to sustained overheating, extending whole-unit service life in high-risk, high-temperature environments.

ATEX Compliance: Certainty, Not Approximation

Explosion protection conforms to the ATEX EN 60079 series, and the unit is designed and manufactured in strict accordance with ATEX Directive 2014/34/EU. Marking: Ex db mb IIC T4 Gb, suitable for Zone 1 and Zone 2 explosive hazardous areas. Explosion-proof measures are applied to both indoor and outdoor units, unifying safety integrity with cooling performance. The unit is widely applicable to hazardous sites containing Group ⅡA/ⅡB/ⅡC gases and temperature classes T1–T4, serving the petroleum, chemical, electric power, military, and pharmaceutical industries at ambient temperatures from -7℃ to 55℃.

For projects governed by ATEX or aligned standards, compliance is not an advantage—it is the entry condition. CNWINNEX completes explosion-proof treatment at the whole-unit level on a split wall-mounted architecture, avoiding the performance compromises and certification ambiguities that can arise when standard air conditioners are converted after the fact.

Split Wall-Mounted Architecture: Installation Flexibility for Constrained Hazardous Spaces

The form factor matters in hazardous areas. The split wall-mounted configuration places the indoor unit on the wall, preserving floor-level work area, while the outdoor unit can be positioned where ventilation and service access are more favorable. This is particularly relevant for electrical rooms, analyzer shelters, control cabins, and high-temperature workshops where footprint is at a premium. Developed on a proven brand-name air conditioning platform, the CNWINNEX unit retains the maturity of the underlying refrigeration system while applying comprehensive explosion-proof measures across both indoor and outdoor sections.

Typical Applications

Zone 1 and Zone 2 high-temperature hazardous work sites in the petroleum, chemical, electric power, military, and pharmaceutical industries, with ambient temperatures of -7℃ to 55℃—including refinery process units, offshore platforms, desert oil and gas stations, high-temperature workshops, and extreme-climate regions. The unit provides a safe and reliable working and living environment for on-site personnel.
