CNWINNEX Trailer Type Packaged Explosion-Proof Air Conditioner BKT-65 | 68kW Mobile Industrial Explosion-Proof AC
CNWINNEX Trailer Type Packaged Explosion-Proof Air Conditioner BKT-65 | 68kW Mobile Industrial Explosion-Proof AC

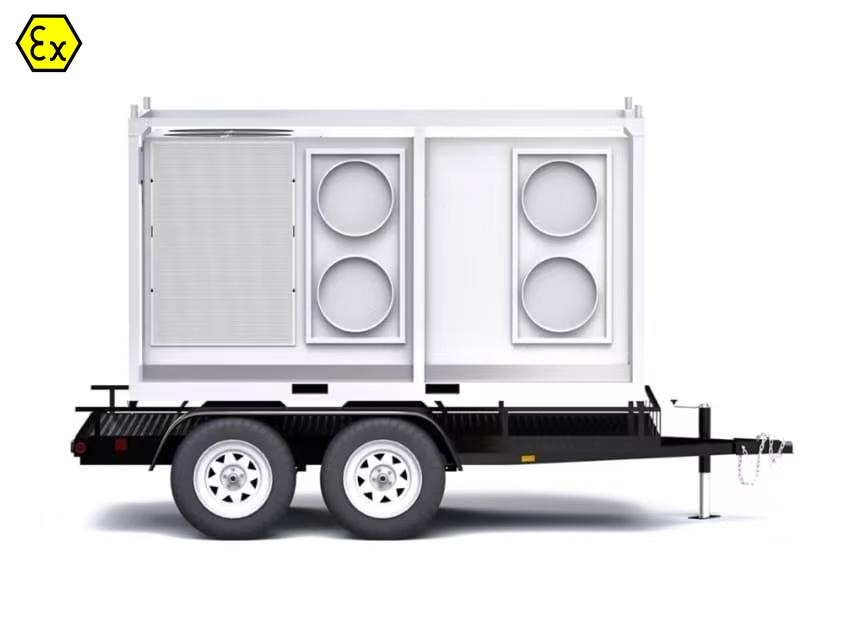

The CNWINNEX trailer type packaged explosion-proof air conditioner (BKT-65) is a mobile integrated air conditioning unit specially developed for explosive hazardous areas in the petroleum, chemical, electric power, military and pharmaceutical industries. It is suitable for sites where explosive atmospheres formed by flammable gases or vapours of Group ⅡA, ⅡB, ⅡC and temperature classes T1~T4 mixed with air may exist. The unit is designed and manufactured in strict compliance with ATEX Directive 2014/34/EU and the EN 60079 series explosion protection standards. Explosion-proof marking: Ex db ib mb IIC T4 Gb, suitable for Zone 1 and Zone 2 explosive hazardous areas. Complete explosion-proof technical documentation is supplied to support HSE review and site acceptance for projects worldwide. The trailer-mounted packaged design enables rapid relocation and plug-and-play operation, delivering stable and reliable cooling for high-temperature and high-hazard work sites.
Key Product Advantages
● Trailer packaged design: Fully integrated on a trailer chassis with compact structure and flexible mobility, ideal for rapid deployment and relocation at remote and temporary work sites
● Powerful cooling performance: Cooling capacity up to 68000W with optional 75000W heating capacity, meeting large hazardous area cooling requirements
● Wide-range stable operation: Suitable for ambient temperatures from -7℃ to 55℃, operating reliably under extreme climatic conditions
● Efficient and reliable compressor: Hermetic scroll compressor delivers smooth operation, low noise and long service life
● Corrosion-resistant heat exchange system: Copper tube and aluminum fin heat exchanger with electrophoretic anti-corrosion treatment, adapting to harsh corrosive environments
● High water protection: Whole unit achieves IPX4 high ingress protection rating, suitable for outdoor and demanding conditions
● Multiple power supply adaptability: AC380-400V/50Hz to 440V/60Hz options meet power supply conditions of different regions
● Quality protective housing: Carbon steel cabinet with anti-corrosion paint (RAL7035), corrosion-resistant, elegant and suitable for long-term outdoor service
● Eco-friendly refrigerant: R134a environmentally friendly refrigerant with high cooling efficiency
Technical Specifications
Typical Applications
Oil extraction and refinery units, chemical production plants, electric power and substations, military equipment and pharmaceutical clean workshops, and other Zone 1 / Zone 2 hazardous areas containing Group ⅡA / ⅡB / ⅡC, T1~T4 explosive gas mixtures. Particularly suitable for field camps, temporary work sites and emergency rescue operations requiring rapid mobile deployment for cooling in high-temperature high-hazard environments.
