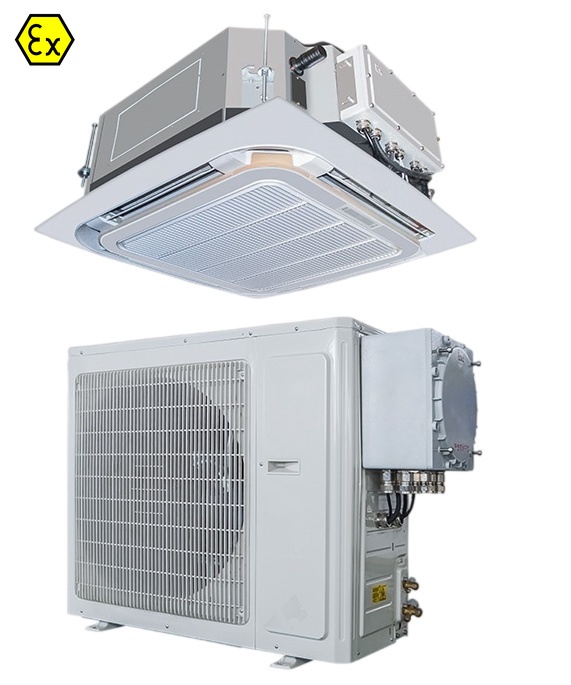

CNWINNEX Engineering Explosion-Proof AC Systems for 50°C Operation

Engineering Explosion-Proof AC Systems for 50°C Operation

Designing cooling equipment for 50°C ambient conditions compounds the challenges of explosion protection. Heat rejection becomes progressively more difficult as the temperature differential between the condenser and surrounding air shrinks. A unit rated for 35°C ambient may lose 30% or more of its cooling capacity at 50°C—assuming it continues operating at all. Material selection determines whether components survive sustained thermal stress: seals that remain flexible at moderate temperatures can harden and crack at 50°C, compromising both explosion protection and refrigerant containment; lubricants thin under heat, accelerating bearing wear; electronic control boards experience accelerated aging when junction temperatures climb.

We address these constraints through several engineering approaches. Heat exchanger surface area increases to compensate for the reduced temperature differential; refrigerant selection shifts toward compounds that maintain favourable thermodynamic properties at elevated condensing temperatures; component derating ensures that electrical and mechanical parts operate well within their thermal limits even when ambient conditions reach the design maximum. In oil and gas projects, explosion-proof electrical systems are required to function reliably despite sustained high temperatures and the corrosive compounds present in operations. Material specifications emphasize corrosion resistance alongside thermal stability, so the systems maintain functionality throughout commissioning and early operation without the safety incidents that can plague installations where equipment selection does not match environmental demands.

How Explosion-Proof AC Maintains Efficiency in Extreme Heat

Maintaining cooling efficiency at 50°C requires deliberate engineering choices rather than simply oversizing equipment. Enhanced heat exchangers with optimized fin geometry and tube arrangements maximize heat transfer per unit of surface area; high-efficiency compressors designed for elevated condensing pressures reduce the energy penalty associated with high-temperature operation. Internal thermal management prevents the cascade failure that occurs when control electronics overheat—sensitive components sit in thermally isolated compartments or receive dedicated cooling airflow, and temperature sensors throughout the unit feed data to control systems that can modulate operation to prevent damage during thermal excursions.

The practical result is equipment that delivers rated capacity consistently rather than degrading as conditions worsen. Energy consumption stays predictable, and maintenance intervals remain stable rather than compressing as components age prematurely. For facilities operating in remote or difficult-to-access locations, this reliability translates directly into reduced operational costs and fewer interventions in hazardous zones where every maintenance activity carries inherent risk.

Meeting ATEX and International Certification Requirements

International certification frameworks establish the baseline for explosion-proof equipment. ATEX directives govern equipment sold within the European Union, defining essential health and safety requirements through detailed technical standards, while the EN 60079 series provides unified technical requirements for electrical equipment in explosive atmospheres. CNWINNEX explosion-proof air conditioners are designed and manufactured in strict compliance with ATEX Directive 2014/34/EU and the EN 60079 series. Explosion-proof marking: Ex db mb IIC T4 Gb, suitable for Zone 1 and Zone 2 explosive hazardous areas. Within these frameworks, several classification parameters determine equipment suitability for specific applications:

T-ratings require particular attention in high-temperature applications. A unit operating at 50°C ambient will have higher surface temperatures than the same unit at 25°C, and the T-rating must account for this elevation, ensuring surfaces remain below the ignition threshold of any hazardous substance that might contact the equipment. CNWINNEX equipment carries ATEX certification and conforms to the EN 60079 series,This breadth reflects both the global nature of industrial projects and the varying regulatory requirements across jurisdictions.

What Standards Apply to Explosion-Proof AC in High-Temperature Environments

High-temperature operation introduces specific requirements within the broader ATEX and EN 60079 frameworks. Material compatibility clauses address the degradation that can occur when polymers, elastomers and lubricants experience sustained thermal stress; components that meet explosion-protection requirements at moderate temperatures may fail those requirements after thermal aging compromises their mechanical properties. Ingress protection ratings interact with temperature considerations—thermal cycling can stress seals and gaskets, potentially opening pathways for dust or moisture entry, so IP ratings must be maintained throughout the equipment’s service life, not merely at initial installation.

Temperature class adherence becomes more demanding when ambient conditions consume a larger portion of the available thermal margin. A T4 rating (135°C maximum surface temperature) provides 85°C of headroom above a 50°C ambient—substantially less than the 110°C available at 25°C ambient. Equipment design must account for this reduced margin through enhanced heat dissipation or selection of a more conservative temperature class.

Explosion-Proof AC Applications Across High-Risk Industries

The industries requiring explosion-proof climate control share a common characteristic: the presence of flammable or explosive atmospheres during normal operations, not merely during upset conditions. Oil and gas facilities handle hydrocarbons throughout extraction, processing and storage; chemical plants work with solvents, reactants and intermediates that fall within explosive limits; pharmaceutical manufacturing involves flammable solvents in synthesis and coating operations; mining operations generate combustible dusts; marine applications combine confined spaces with fuel vapours and cargo atmospheres. Each application brings specific requirements beyond basic explosion protection—oil and gas operations demand corrosion resistance suitable for sulfur compounds together with mechanical robustness against handling and long-term vibration, while pharmaceutical facilities need to accommodate specific electrical distribution architectures while meeting cleanliness expectations. CNWINNEX provides customized explosion-proof climate control solutions adapted to these high-risk industries.

Selecting Explosion-Proof Air Conditioning for Your Facility

Equipment selection begins with site characterization: the zone classification determines the required equipment protection level, the substances present establish the required T-rating, ambient conditions set the thermal design parameters, and corrosive atmospheres—whether from process chemicals or marine salt spray—dictate material specifications. Cooling capacity calculation must account for all heat sources within the conditioned space: process equipment, lighting, personnel, solar gain through walls and roofs, and infiltration of hot outside air. Oversizing provides margin for uncertainty but increases capital cost and may compromise humidity control; undersizing leads to inadequate cooling during peak conditions, potentially forcing process curtailment or creating unsafe working conditions.

Maintenance access deserves consideration during selection. Equipment installed in hazardous areas may require hot work permits, gas testing and other precautions for routine service; units designed for external maintenance access—filters, controls and refrigerant connections accessible from outside the hazardous zone—reduce the frequency and duration of work within classified areas. Integration with existing control systems affects both installation complexity and operational effectiveness: units that communicate with plant-wide monitoring systems enable centralized oversight and early detection of developing problems, while standalone units may be simpler to install but require separate monitoring arrangements.

Lifecycle Value and Long-Term Operational Performance

The purchase price of explosion-proof air conditioning represents a fraction of total ownership cost. Energy consumption over a 15-20 year service life typically exceeds initial capital cost by a substantial margin, maintenance requirements—both routine service and unplanned repairs—add further to lifecycle cost, and downtime during equipment failures can halt production processes with costs that dwarf the equipment value itself. Quality equipment designed for the actual operating environment minimizes these lifecycle costs: components operating within their design limits last longer and fail less frequently, efficient heat exchangers and compressors reduce energy consumption throughout the equipment’s service life, and robust construction withstands the inevitable handling and environmental stresses that occur in industrial settings.

Our approach to lifecycle management extends beyond equipment supply. Preventative maintenance programs identify developing problems before they cause failures, and technical support helps operators optimize equipment performance for their specific conditions. This ongoing relationship builds the operational knowledge that keeps equipment performing reliably year after year.

Contact CNWINNEX for Explosion-Proof AC Solutions

For explosion-proof air conditioning engineered for 50°C ambient conditions and certified to international standards, contact CNWINNEX. Our engineering team provides technical consultation, equipment selection support and customized designs for hazardous-location climate control applications.
