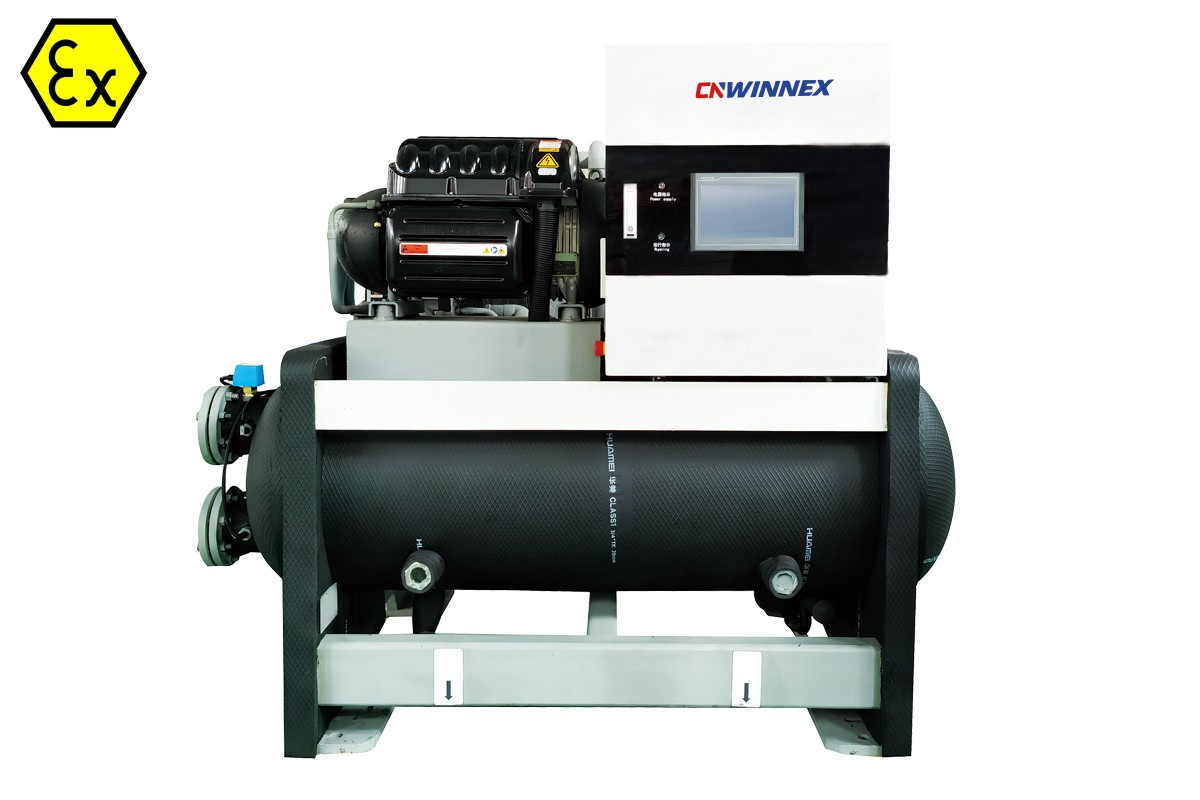

Explosion-proof Water-cooled Chiller Unit (Centrifugal Type)
Explosion-proof Water-cooled Chiller Unit (Centrifugal Type)
Application Scenarios

● Hazardous areas with explosive gas mixtures: Zone 1, Zone 2.

● Explosive gas mixtures: IIA, IIB, IIC.

● Hazardous areas with explosive dust: Zone 20, Zone 21, Zone 22.

MESSAGE
PRODUCT DESCRIPTION

Application Scenarios

● Hazardous areas with explosive gas mixtures: Zone 1, Zone 2.

● Explosive gas mixtures: IIA, IIB, IIC.

● Hazardous areas with explosive dust: Zone 20, Zone 21, Zone 22.


Product Features

1. Utilizes high-quality key components from internationally renowned manufacturers, featuring a meticulously designed structure and optimally matched systems.

2. The unit is reliable, durable, stable in operation, energy-efficient, with a wide capacity regulation range. It is compact, small in size, low in noise and vibration, and easy to operate and maintain.

3. Incorporates the most advanced explosion-proof technology to ensure superior explosion-proof performance and safe, reliable operation.

4. Widely used in hazardous locations with combustible gases, such as the military, petroleum, chemical, and pharmaceutical industries.

Item

BKT-1000

BKT-1200

BKT-1600

Capacity Control

10~100%

10~100%

10~100%

Cooling Capacity

1000Kw

1200Kw

1600Kw

Noise Level (IPLV Condition)

5.96

6.02

6.21

Compressor Type

Single-stage

Single-stage

Single-stage

Power Supply

380V 3N~ 50Hz

380V 3N~ 50Hz

380V 3N~ 50Hz

Compressor

Rated Power

191Kw

227Kw

293Kw

Compressor Connected Power

220Kw

260Kw

300Kw

Refrigerant

Charge Volume

50L

50L

50L

Refrigerant Type

R134a

R134a

R134a

Evaporator

Water Flow

172m³/h

206m³/h

275m³/h

Water Pressure Drop

75Kpa

75Kpa

75Kpa

Evaporator Number of Passes

2

2

2

Connection Size

200mm

200mm

200mm

Condenser

Water Flow

215m³/h

255m³/h

344m³/h

Water Pressure Drop

70Kpa

70Kpa

70Kpa

Condenser Number of Passes

2

2

2

Connection Size

200mm

200mm

200mm

Connection Method

Flanged connection

Flanged connection

Flanged connection

Dimensions & weight

Width

3630mm

3630mm

3630mm

Depth

1680mm

1680mm

1680mm

Height

2060mm

2060mm

2060mm

Net Weight

5800Kg

6100Kg

6700Kg

Operating Weight

6390Kg

6800Kg

7360Kg

Explosion-proof Marking

Explosion-proof Marking

Ex d ib mb IIB / IIC T4 Gb

Ex d ib mb IIB / IIC T4 Gb

Ex d ib mb IIB / IIC T4 Gb
