● Hazardous areas with explosive gas mixtures: Zone 1, Zone 2.
● Explosive gas mixtures: IIA, IIB, IIC.
● Hazardous areas with explosive dust: Zone 20, Zone 21, Zone 22.
Application Scenarios
● Hazardous areas with explosive gas mixtures: Zone 1, Zone 2.
● Explosive gas mixtures: IIA, IIB, IIC.
● Hazardous areas with explosive dust: Zone 20, Zone 21, Zone 22.

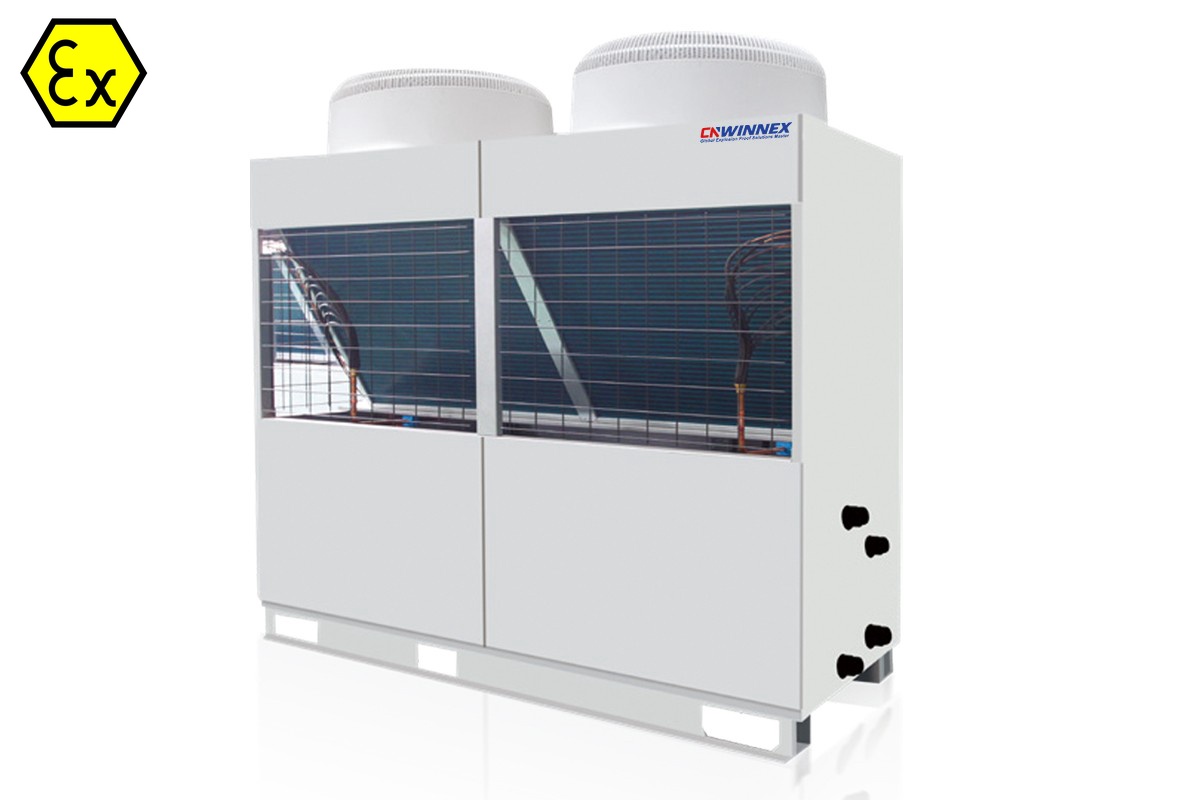

Product Features:
1. Utilizes high-quality key components from internationally renowned manufacturers, featuring a carefully designed structure and optimal system configuration.
2. The unit is reliable, durable, energy-efficient, compact, with low noise and vibration, and is easy to operate and maintain. It supports both local and remote control.
3. The heat pump unit integrates cooling and heating functions, capable of providing cooling in summer and heating in winter.
4. The unit does not require a cooling tower or other cooling water systems, making it suitable for areas with limited water resources. It also does not need a dedicated equipment room and can be installed directly outdoors or on rooftops, saving floor space.
5. Incorporates the most advanced explosion-proof technology to ensure superior explosion-proof performance, enabling safe and reliable operation.
6. Widely used in hazardous locations with combustible gases in industries such as military, petroleum, chemical, and pharmaceutical sectors.
CNWINNEX explosion-proof systems are widely deployed in oil & gas, petrochemicals, pharmaceuticals, ports & terminals, mining, power generation, offshore platforms, and other areas where flammable gases or dusts are present. Typical applications include control room climate control, hazardous area logistics and access management, video surveillance & security, pressurized analyzer shelters, robotic inspection, as well as custom explosion-proof enclosures and system integration.
An explosion-proof air conditioner is a specialized HVAC unit designed for hazardous environments where flammable gases, vapors, or combustible dusts are present (e.g., petrochemical plants, gas stations, paint booths, pharmaceutical labs).
The most critical difference from a standard air conditioner lies in “active ignition prevention.” Standard units generate tiny sparks during normal operation – such as when relays open/close, compressors start/stop, or circuits make/break. While safe in normal air, these sparks can be deadly in an explosive atmosphere.
CNWINNEX’s explosion-proof design is based on the T4 temperature class. For high-temperature regions such as the Middle East or areas with extreme summer heat, we offer custom units rated for ambient temperatures up to 60°C (140°F) , ensuring reliable operation without overload in harsh tropical climates. For cold regions, we offer custom units rated for ambient temperatures as low as -50°C (-58°F) , guaranteeing safe operation in extreme arctic conditions.
The explosion-proof rating of CNWINNEX air conditioners is:
Ex 2 G D Ex db ib mb IIB T4 Gb / Ex 2 G D Ex db ib mb IIC T4 Gb / Ex ib mb tb IIIC T130°C Db
●For Gas (G): Ex db ib mb IIC T4 Gb
Suitable for IIC gas groups (including hydrogen, acetylene, etc.), using flameproof (db), intrinsic safety (ib), and encapsulated (mb) combined protection. Temperature class T4 (max surface temperature ≤135°C), Equipment Protection Level Gb.
●For Dust (D): Ex ib mb tb IIIC T130°C Db
Suitable for IIIC conductive dusts, using intrinsic safety (ib), encapsulation (mb), and dust-tight (tb) protection. Maximum surface temperature 130°C, Equipment Protection Level Db.
CNWINNEX products comply with international explosion-proof certification standards such as ISO, CNEX, ATEX, IECEx, SAA, EAC, ensuring safe use in different countries and regions., and BV or DNV (for offshore applications) . Depending on the product type and zone classification, we offer various protection concepts including Ex d, Ex e, Ex ib, and Ex nA, with ingress protection up to IP66/IP67, ensuring safe and compliant operation in hazardous environments worldwide.
Absolutely. Explosion-proof Custom Engineering is our sixth core business. From non-standard Ex components (special material junction boxes, intrinsically safe sensors, etc.) to integrated Ex systems (skid-mounted control rooms, pressurized cabins, legacy equipment retrofitting), we provide full-process custom services covering conceptual design, 3D simulation, compliance certification, manufacturing, and delivery. Simply share your operating parameters and functional needs, and we will engineer a dedicated explosion-proof safety solution for you.
