4-Row Ceiling-Mounted Return Air Type
Model | BG-1 | BG-2 | BG-3 | BG-4 | BG-5 | BG-6 | BG-7 | BG-8 | BG-9 | BG-12 |
Nominal Airflow | 1500m³/h | 2000m³/h | 3000m³/h | 4000m³/h | 5000m³/h | 6000m³/h | 7000m³/h | 8000m³/h | 9000m³/h | 12000m³/h |
Cooling Capacity | 9.8Kw | 12.5Kw | 18.7Kw | 24.9Kw | 31Kw | 37.4Kw | 43.6Kw | 49.8Kw | 56Kw | 74.8Kw |
Heating Capacity | 15.8Kw | 22.4Kw | 33.5Kw | 43.2Kw | 56.1Kw | 66.8Kw | 78.8Kw | 90.8Kw | 96.3Kw | 135.6Kw |
Water Flow Rate | 0.43L/s | 0.53L/s | 0.79L/s | 1.1L/s | 1.3L/s | 1.6L/s | 1.83L/s | 2.1L/s | 2.4L/s | 3.2L/s |
Water Resistance | 6.5Kpa | 9.2Kpa | 26.2Kpa | 20.1Kpa | 35.3Kpa | 38.9Kpa | 46.7Kpa | 53.5Kpa | 34Kpa | 37.3Kpa |
Weight | 112Kg | 115Kg | 130Kg | 165Kg | 170Kg | 185Kg | 200Kg | 230Kg | 290Kg | 339Kg |
Power Supply | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Electric Shock Protection Class | I | I | I | I | I | I | I | I | I | I |
Recommended External Static Pressure Range | 40~285Pa | 40~285Pa | 75~400Pa | 60~400Pa | 95~400Pa | 75~400Pa | 75~360Pa | 90~370Pa | 95~450Pa | 125~500Pa |
Static Pressure Range and Corresponding Motor Power | Range 1 | 40~285Pa | 40~285Pa | 75~249Pa | 60~281Pa | 95~134Pa | 75~146Pa | 75~257Pa | 90~182Pa | 95~265Pa | 125~180Pa |
Motor power | 0.55Kw | 0.55Kw | 0.55Kw | 0.75Kw | 0.75Kw | 0.75Kw | 1.1Kw | 1.1Kw | 1.5Kw | 2.2Kw |
Range 2 | - | - | 250~343Pa | 282~400Pa | 135~400Pa | 147~347Pa | 258~360Pa | 183~307Pa | 266~450Pa | 181~377Pa |
Motor power | - | - | 0.75Kw | 1.1Kw | 1.1Kw | 1.1Kw | 1.5Kw | 1.5Kw | 2.2Kw | 3.0Kw |
Range 3 | - | - | 344~400Pa | - | - | 348~400Pa | - | 308~370Pa | - | 378~500Pa |
Motor power | - | - | 1.1 | - | - | 1.5Kw | - | 2.2Kw | - | 4.0Kw |
Coil | Type | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins |
Working Pressure | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa |
Fan | Type | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan |
Drive Method | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive |
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Motor Type | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor |
Noise | ≤53 dBA | ≤55 dBA | ≤58 dBA | ≤59 dBA | ≤60 dBA | ≤60 dBA | ≤61 dBA | ≤63 dBA | ≤64 dBA | ≤66 dBA |
Connection Pipe Size | Water Inlet | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 | DN50 |
Water Outlet | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 | DN50 |
Condensate Drain | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 |
Explosion-proof Mark | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb |
Notes:
1. This unit is designed according to national mechanical industry standard JB/T9066-1999,and ATEX directives: 2014/34/EU.
2. Data in the table are measured under the following conditions:
3. Rated cooling: Return air dry-bulb/wet-bulb temperature: 27/19.5°C, inlet/outlet water temperature: 7/12°C;
Rated heating: Return air dry-bulb temperature: 21°C, inlet water temperature: 60°C.
4. Operating weight can be calculated as 1.2 times the unit weight (excluding circulating water) in the table.
5. This table applies to left/right hand models.
6. Parameters are subject to change; refer to the nameplate for actual data.
4-Row Ceiling-Mounted Fresh Air Type
Model | BG-1 | BG-2 | BG-3 | BG-4 | BG-5 | BG-6 | BG-7 | BG-8 | BG-9 | BG-12 |
Nominal Airflow | 1500m³/h | 2000m³/h | 3000m³/h | 4000m³/h | 5000m³/h | 6000m³/h | 7000m³/h | 8000m³/h | 9000m³/h | 12000m³/h |
Cooling Capacity | 20.6Kw | 27.5Kw | 40.7Kw | 55.3Kw | 66.3Kw | 79.6Kw | 92.9Kw | 106.3Kw | 119.5Kw | 159.3Kw |
Heating Capacity | 22.8Kw | 28.6Kw | 42.5Kw | 55.9Kw | 68.9Kw | 80.7Kw | 89.5Kw | 108.8Kw | 121.4Kw | 160.9Kw |
Water Flow Rate | 0.99L/s | 1.28L/s | 1.9L/s | 2.63L/s | 3.17L/s | 3.8L/s | 4.43L/s | 5.1L/s | 5.7L/s | 7.6L/s |
Water Resistance | 30.3Kpa | 40.5Kpa | 46.6Kpa | 50.8Kpa | 56.9Kpa | 45.8Kpa | 50.5Kpa | 55.1Kpa | 45.2Kpa | 50.8Kpa |
Weight | 112Kg | 115Kg | 125Kg | 150Kg | 162Kg | 180Kg | 200Kg | 230Kg | 290Kg | 339Kg |
Power Supply | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Electric Shock Protection Class | I | I | I | I | I | I | I | I | I | I |
Recommended External Static Pressure Range | 40~285Pa | 40~285Pa | 75~400Pa | 60~400Pa | 95~400Pa | 75~400Pa | 75~360Pa | 90~370Pa | 95~450Pa | 125~500Pa |
Static Pressure Range and Corresponding Motor Power | Range 1 | 40~285Pa | 40~285Pa | 75~246Pa | 60~281Pa | 95~134Pa | 75~146Pa | 75~257Pa | 90~182Pa | 95~265Pa | 125~180Pa |
Motor power | 0.55Kw | 0.55Kw | 0.55Kw | 0.75Kw | 0.75Kw | 0.75Kw | 1.1Kw | 1.1Kw | 1.5Kw | 2.2Kw |
Range 2 | - | - | 250~343Pa | 282~400Pa | 135~400Pa | 147~347Pa | 258~360Pa | 183~307Pa | 266~450Pa | 181~377Pa |
Motor power | - | - | 0.75Kw | 1.1Kw | 1.1Kw | 1.1Kw | 1.5Kw | 1.5Kw | 2.2Kw | 3.0Kw |
Range 3 | - | - | 344~400Pa | - | - | 348~400Pa | - | 308~370Pa | - | 378~500Pa |
Motor power | - | - | 1.1 | - | - | 1.5Kw | - | 2.2Kw | - | 4.0Kw |
Coil | Type | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins |
Working Pressure | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa |
Fan | Type | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan |
Drive Method | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive |
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Motor Type | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor |
Noise | ≤53 dBA | ≤55 dBA | ≤58 dBA | ≤59 dBA | ≤60 dBA | ≤60 dBA | ≤61 dBA | ≤63 dBA | ≤64 dBA | ≤66 dBA |
Connection Pipe Size | Water Inlet | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 | DN50 |
Water Outlet | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 | DN50 |
Condensate Drain | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 |
Explosion-proof Mark | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb |
Notes:
1. This unit is designed according to national mechanical industry standard JB/T9066-1999,and ATEX directives: 2014/34/EU.
2. Data in the table are measured under the following conditions:
3. Rated cooling: Return air dry-bulb/wet-bulb temperature: 27/19.5°C, inlet/outlet water temperature: 7/12°C;
Rated heating: Return air dry-bulb temperature: 21°C, inlet water temperature: 60°C.
4. Operating weight can be calculated as 1.2 times the unit weight (excluding circulating water) in the table.
5. This table applies to left/right hand models.
6. Parameters are subject to change; refer to the nameplate for actual data.

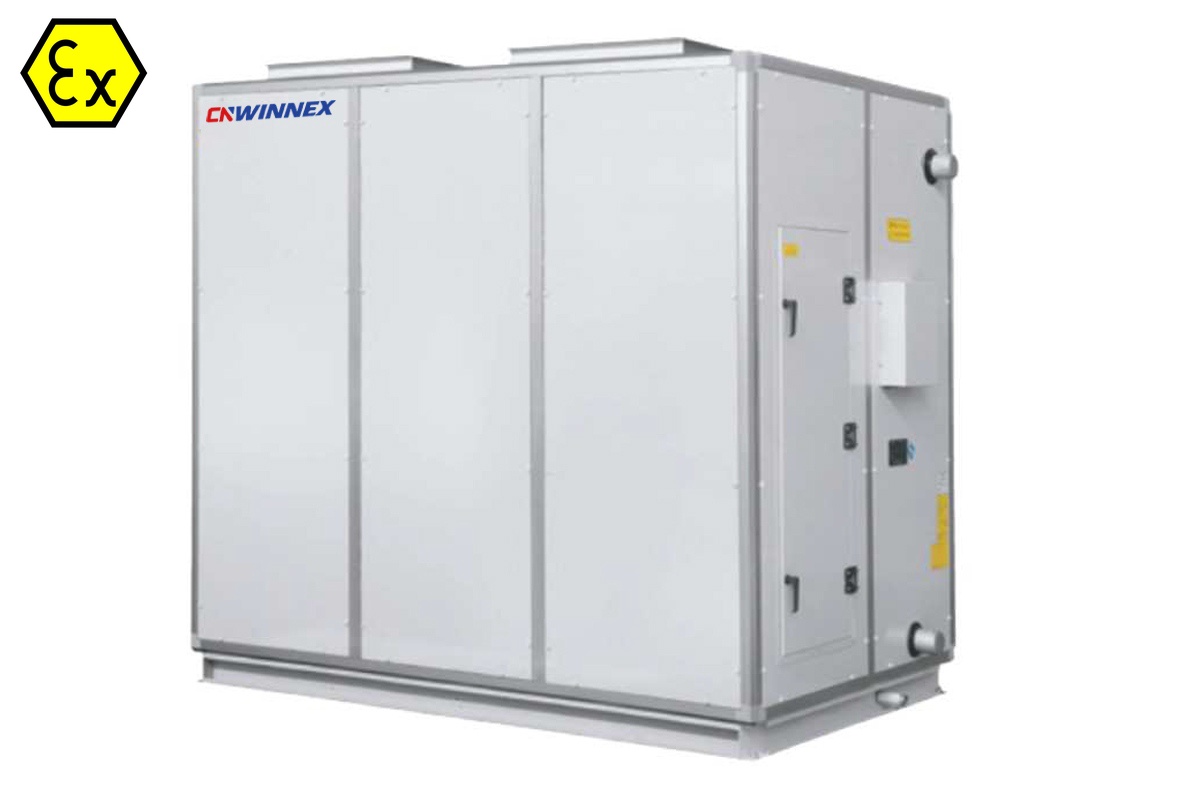

Floor-Standing Return Air Type
Model | BG-3 | BG-4 | BG-5 | BG-6 | BG-8 | BG-12 | BG-16 |
Nominal Airflow | 3000m3/h | 4000m3/h | 5000m3/h | 6000m3/h | 8000m3/h | 12000m3/h | 16000m3/h |
Cooling Capacity | 18.2Kw | 23.5Kw | 32.2Kw | 36.4Kw | 50.5Kw | 72.1Kw | 95.1Kw |
Heating Capacity | 28.2Kw | 40.2Kw | 50.2Kw | 58.2Kw | 75.8Kw | 112.8Kw | 143.3Kw |
Water Flow Rate | 0.87L/s | 1.13L/s | 1.54L/s | 1.74L/s | 2.32L/s | 3.44L/s | 4.35L/s |
Water Resistance | 9.15Kpa | 11.9Kpa | 16Kpa | 21.2Kpa | 30.9Kpa | 12Kpa | 23Kpa |
Weight | 230Kg | 275Kg | 325Kg | 360Kg | 410Kg | 470Kg | 770Kg |
Power Supply | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Electric Shock Protection Class | I | I | I | I | I | I | I |
Recommended External Static Pressure Range | 50~300Pa | 65~350Pa | 65~350Pa | 75~350Pa | 90~450Pa | 100~500Pa | 120~600Pa |
Static Pressure Range and Corresponding Motor Power | Range 1 | 50~170Pa | 65~200Pa | 65~220Pa | 75~130Pa | 90~340Pa | 100~200Pa | 120~250Pa |
Motor power | 0.55Kw | 1.1Kw | 1.1Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw |
Range 2 | 170~250Pa | 200~350Pa | 220~350Pa | 130~350Pa | 340~450Pa | 200~370Pa | 250~600Pa |
Motor power | 0.75Kw | 1.5Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw | 5.5Kw |
Range 3 | 250~300Pa | - | - | - | - | 370~450Pa | - |
Motor power | 1.1Kw | - | - | - | - | 5.5Kw | - |
Dimension | Width | 1150mm | 1150mm | 1350mm | 1350mm | 1750mm | 1950mm | 2250mm |
Depth | 730mm | 730mm | 830mm | 830mm | 830mm | 830mm | 930mm |
Heigh | 1300mm | 1300mm | 1450mm | 1600mm | 1800mm | 1900mm | 2100mm |
Coil | Type | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins |
Working Pressure | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa |
Fan | Type | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan |
Drive Method | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive |
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Motor Type | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor |
Noise | ≤58 dBA | ≤59 dBA | ≤60 dBA | ≤60 dBA | ≤63 dBA | ≤66 dBA | ≤68 dBA |
Connection Pipe Size | Water Inlet | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN65 |
Water Outlet | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN65 |
Condensate Drain | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 |
Explosion-proof Mark | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb |
Note:
1. This unit is designed according to national mechanical industry standard JB/T9066-1999 and ATEX directive 2014/34/EU.
2. Data in the table are measured under the following nominal conditions:
3. Rated cooling: Return air dry-bulb/wet-bulb temperature: 27/19.5°C, inlet/outlet water temperature: 7/12°C;
Rated heating: Return air dry-bulb temperature: 21°C, inlet water temperature: 60°C.
4. Operating weight can be calculated as 1.2 times the unit weight (excluding circulating water) in the table.
5. This table applies to left/right hand models.
Floor-Standing Fresh Air Type
Model | BG-3 | BG-4 | BG-5 | BG-6 | BG-8 | BG-12 | BG-16 |
Nominal Airflow | 3000m3/h | 4000m3/h | 5000m3/h | 6000m3/h | 8000m3/h | 12000m3/h | 16000m3/h |
Cooling Capacity | 43.8Kw | 58.5Kw | 73.1Kw | 88.2Kw | 116.5Kw | 172.6Kw | 212.1Kw |
Heating Capacity | 47.3Kw | 63.2Kw | 78.5Kw | 95.2Kw | 125.8Kw | 184.4Kw | 245.3Kw |
Water Flow Rate | 2.1L/s | 2.8L/s | 3.49L/s | 4.21L/s | 5.59L/s | 8.27L/s | 10.13L/s |
Water Resistance | 17.4Kpa | 20.1Kpa | 12.2Kpa | 14.1Kpa | 18.4Kpa | 34.6Kpa | 26.6Kpa |
Weight | 230Kg | 275Kg | 325Kg | 360Kg | 410Kg | 525Kg | 770Kg |
Power Supply | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Electric Shock Protection Class | I | I | I | I | I | I | I |
Recommended External Static Pressure Range | 50~300Pa | 65~350Pa | 65~350Pa | 75~350Pa | 90~450Pa | 100~500Pa | 120~600Pa |
Static Pressure Range and Corresponding Motor Power | Range 1 | 50~170Pa | 65~200Pa | 65~220Pa | 75~130Pa | 90~340Pa | 100~200Pa | 120~250Pa |
Motor power | 0.55Kw | 1.1Kw | 1.1Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw |
Range 2 | 170~250Pa | 200~350Pa | 220~350Pa | 130~350Pa | 340~450Pa | 200~370Pa | 250~600Pa |
Motor power | 0.75Kw | 1.5Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw | 5.5Kw |
Range 3 | 250~300Pa | - | - | - | - | 370~450Pa | - |
Motor power | 1.1Kw | - | - | - | - | 5.5Kw | - |
Dimension | Width | 1150mm | 1150mm | 1350mm | 1350mm | 1750mm | 1950mm | 2250mm |
Depth | 730mm | 730mm | 830mm | 830mm | 830mm | 830mm | 930mm |
Heigh | 1300mm | 1300mm | 1450mm | 1600mm | 1800mm | 1900mm | 2100mm |
Coil | Type | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins | Copper tube with high-efficiency fins |
Working Pressure | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa | ≤1.6MPa |
Fan | Type | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan | Forward-curved multi-blade low-noise explosion-proof centrifugal fan |
Drive Method | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive | Belt drive |
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Motor Type | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor | Class F insulation, three-phase asynchronous explosion-proof motor |
Noise | ≤58 dBA | ≤59 dBA | ≤60 dBA | ≤60 dBA | ≤63 dBA | ≤66 dBA | ≤68 dBA |
Connection Pipe Size | Water Inlet | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN65 |
Water Outlet | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN65 |
Condensate Drain | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 |
Explosion-proof Mark | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb | Ex d IIC T4 Gb |
Note:
1. This unit is designed according to national mechanical industry standard JB/T9066-1999 and ATEX directive 2014/34/EU.
2. Data in the table are measured under the following nominal conditions:
3. Rated cooling: Return air dry-bulb/wet-bulb temperature: 27/19.5°C, inlet/outlet water temperature: 7/12°C;
Rated heating: Return air dry-bulb temperature: 21°C, inlet water temperature: 60°C.
4. Operating weight can be calculated as 1.2 times the unit weight (excluding circulating water) in the table.
5. This table applies to left/right hand models.
